Synopsis
#include <baobab-tree-map.h>
BaobabTreeMap;
BaobabTreeMap* baobab_tree_map_new (void);
void baobab_tree_map_draw (BaobabTreeMap *tm,
GtkTreeModel *model,
GtkTreePath *path,
gint nNameCol,
gint nSizeCol,
gint required_depth);
void baobab_tree_map_clear (BaobabTreeMap *tm);
gint baobab_tree_map get_total_elements (BaobabTreeMap *tm);
void baobab_tree_map_set_zoom (BaobabTreeMap *tm,
gdouble new_zoom);
gdouble baobab_tree_map_get_zoom (BaobabTreeMap *tm);
GdkPixbuf* baobab_tree_map_get_pixbuf (BaobabTreeMap *tm);
void baobab_tree_map_refresh (BaobabTreeMap *tm,
gint new_depth);
const gchar* baobab_tree_map_get_selected_item_name (BaobabTreeMap *tm);
Object Hierarchy
GObject +----GtkObject +----GtkWidget +----GtkContainer +----GtkLayout +----GnomeCanvas
+----BaobabTreeMap
Signals
Description
The BaobabTreeMap is a widget for representing hierarchical data structure as a graphical treemap at any nesting level. The depth of nesting level can be set or it can be left as "unlimited". BaobabTreeMap inherits an anti-aliased GnomeCanvas in order to produce high level images that can be zoomed in/out as far as exported in an image file.
To create a new BaobabTreeMap widget call baobab_tree_map_new() . To draw the data-structure, just call baobab_tree_map_draw() with all required settings.

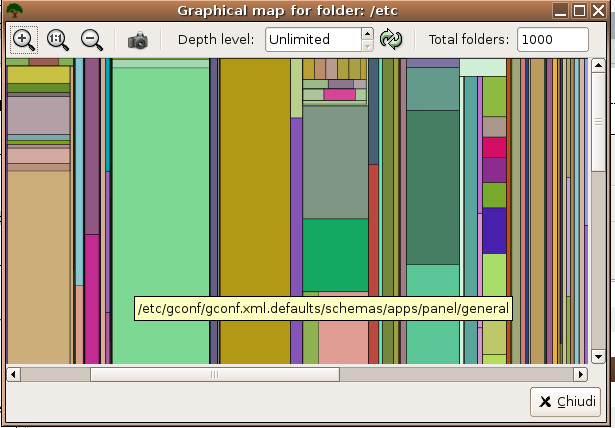

Each item in a BaobabTreeMap widget has a tooltip that shows the related data name, while the rectangular area represents data size element.
Details
BaobabTreeMap
typedef struct _BaobabTreeMap BaobabTreeMap;
This should not be accessed directly. Use the accessor functions as described below.
baobab_tree_map_new ()
BaobabTreeMap* baobab_tree_map_new (void);
Creates a new empty treemap.
| Returns : | A newly-created treemap. |
baobab_tree_map_draw ()
void baobab_tree_map_draw (BaobabTreeMap *tm,
GtkTreeModel *model,
GkTreePath *path,
gint nNameCol,
gint nSizeCol,
gint required_depth);
Draws a treemap on related data structure.
| tm : | A BaobabTreeMap |
| model : | The GtkTreeModel where data-source is stored. |
| path : | The path of the first item to draw. |
| nNameCol : | Column index of the name in the data model . |
| nSizeCol : | Column index of the size in the data model. |
| required_depth : | Required nesting level to draw (-1 = unlimited) |
baobab_tree_map_clear()
void baobab_tree_map_clear (BaobabTreeMap *tm);
Clears the treemap and destroys all allocated objects.
| tm : | A treemap. |
baobab_tree_map_get_total_elements()
gint baobab_tree_map_get_total_elements (BaobabTreeMap *tm);
Returns the number of total elements drawn in the canvas.
| tm : | A treemap. |
| Returns : | A gint containing the number of total elements drawn |
baobab_tree_map_set_zoom()
void baobab_tree_map_set_zoom (BaobabTreeMap *tm,
gdouble new_zoom);
Sets the zooming factor of the image.
| tm : | A treemap. |
| new_zoom : | The new zooming factor. (new_zoom = 1.0 => 100%) |
baobab_tree_map_get_zoom()
gdouble baobab_tree_map_get_zoom (BaobabTreeMap *tm);
Return current zooming factor.
| tm : | A treemap. |
| Returns : | The current zooming factor (returs 1.0 for 100% zoom |
baobab_tree_map_get_pixbuf()
GdkPixbuf* baobab_tree_map_get_pixbuf (BaobabTreeMap *tm);
Returns a GdkPixbuf* to the current drawing. Returns NULL if failed. The returned pointer must be then unreferenced with g_object_unref().
| tm : | A treemap. |
| Returns : | A GdkPixbuf* to the current drawing. |
baobab_tree_map_refresh()
void baobab_tree_map_refresh (BaobabTreeMap *tm,Redraws the treemap recursing until new_depth level. If new_depth == -1 the full treemap is drawn.
gint new_depth);
| tm : | A treemap. |
| new_depth : | The requested depth level of recursion. If -1, all the treemap is drawn |
baobab_tree_map_get_selected_item_name()
const gchar* baobab_tree_map_get_selected_item_name (BaobabTreeMap *tm);Returns a constant pointer to the selected item name. The selected item is retrieved after a left or right mouse-click on the treemap. The name is the one displayed in the tooltip (corresponding to the nNameCol of the GtkTreeModel drawn. See baobab_tree_map_draw() ).
| tm : | A treemap. |
| Returns : | The selected item name. |
